Automatic ARC for Remington 700 SuperMagnum
Type
Price
The new generation Automatic ARC3.0 chassis has come even closer to perfection, incorporating previous developments along with new solutions. The Automatic ARC3.0 chassis offers a number of advantages for building a precision shooting system, namely:
A rigid, solid-metal construction milled from 7075-T6 aluminum alloy with anodizing.
Folding stock.
Adjustable stock components.
Magpul M-LOK interface.
A thumb rest that provides a cleaner and more controlled shot, as no finger other than the one on the trigger will be under tension.
Multiple QD sling mount bases for attaching accessories.
Simple and reliable folding stock mechanism. When folded, the stock locks into the QD sling mount base. To unfold the stock, there’s no need to press and hold a special button—just pull the stock in the unfolding direction.
Tool-free adjustment of stock length and cheek rest height.
The cheek rest is made of low-heat-capacity Delrin material, and the soft buttpad has both adjustable height and a rotatable angle relative to the stock axis.
Mechanism for adjusting magazine lock-in height within the magwell. Now it is possible to use magazines from different manufacturers.
Compared to the previous generation, the Automatic ARC3.0 features several important changes:
The chassis has an extended handguard reinforced with a honeycomb structure, allowing the installation of additional components.
Integrated ARCA Rail and Anschutz Rail interfaces.
Presence of a bag rider on the underside of the stock.
Optional accessories for the Automatic ARC3.0 chassis include:
Adapter for mounting bipods to the ARCA Rail with a Picatinny interface.
Sling mount for attaching bipods to the ARCA Rail.
ARCA platform for shooting from bags (Trident Gun Plate).
NV Bridge 3.0 for front-mounted night vision devices.
Gen 3.0
Gen 2.3

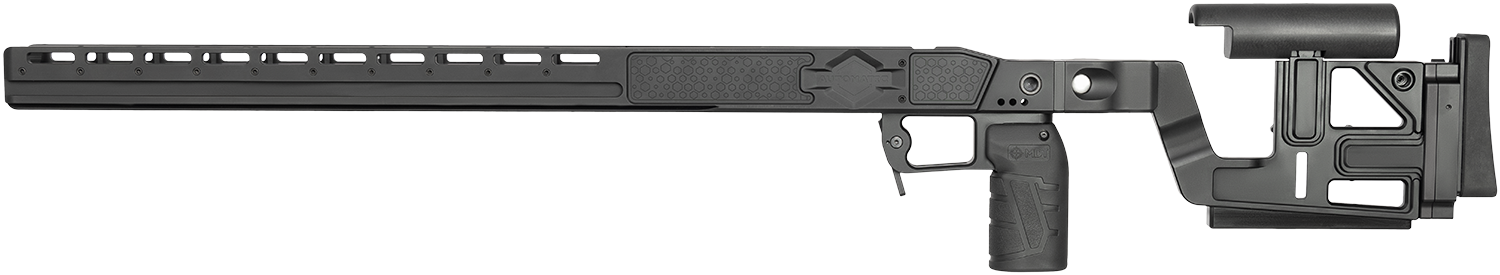

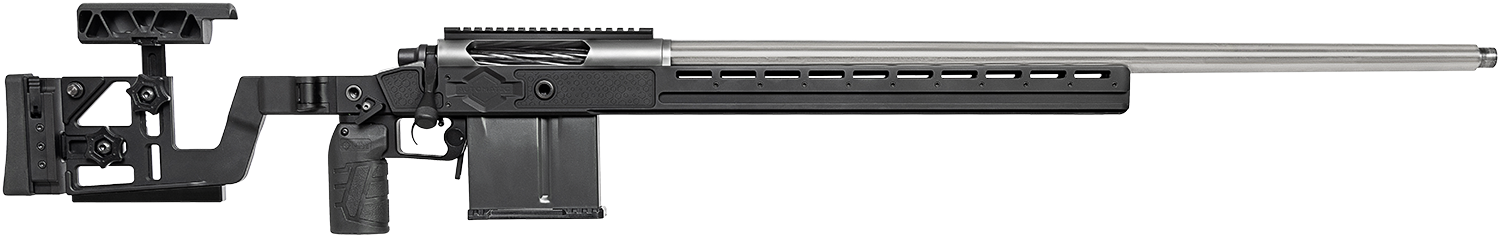

Right side

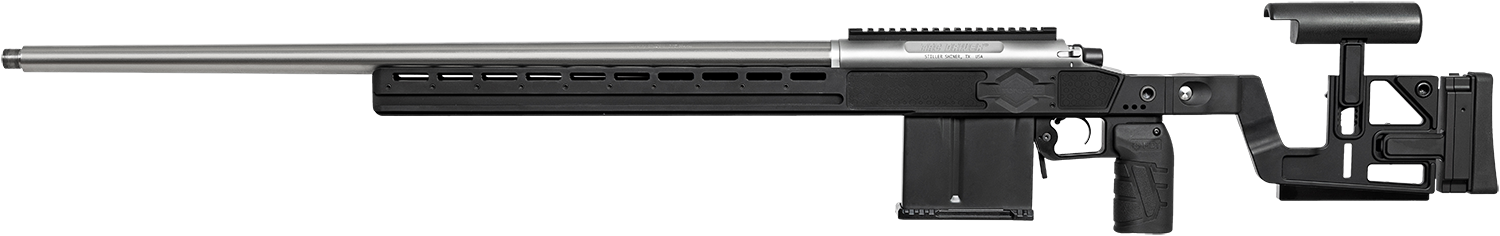

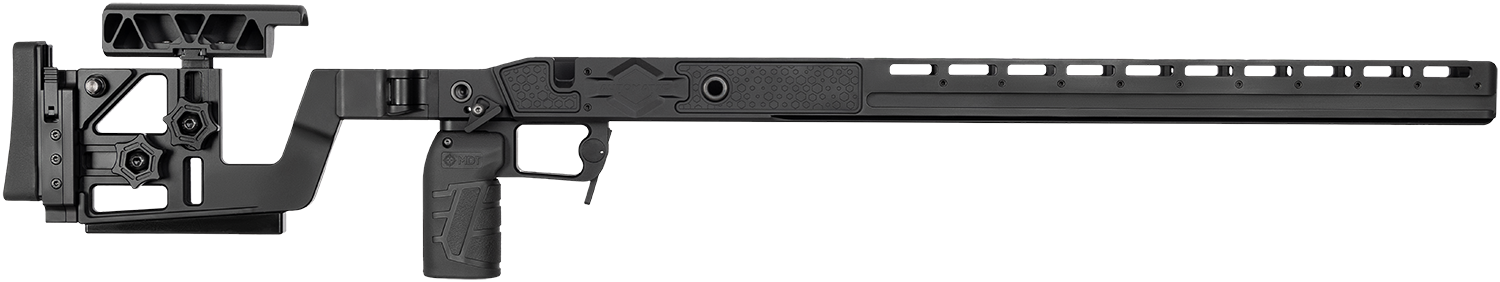

Left side
Top side
Bottom side
Gen 3.0
Fully adjustable stock
Buttstock folds to the right
CNC machined from 7075-T6 aluminum alloy
Highly-stressed parts made out of steel
Hard Anodic Coatings: MIL-A-8625 Type III Class 1 & Class 2
M-LOK compatible interface
No bedding needed
M-LOK, Anschutz Rail, ARCA Rail interfaces
AR-15 type pistol grips compatible
Gen 2.3
Fully adjustable stock
Buttstock folds to the right
CNC machined from 7075-T6 aluminum alloy
Highly-stressed parts made out of steel
Hard Anodic Coatings: MIL-A-8625 Type III Class 1 & Class 2
M-LOK compatible interface
No bedding needed
Proprietary interface for Automatic ARCA Rail and other accessories
AR-15 type pistol grips compatible
Gen 3.0
Gen 2.3
Light and sturdy for extreme field use
Highly customizable for positional shooting
Uses M-LOK interface for additional options
Light and sturdy for extreme field use
Highly customizable for positional shooting
Uses M-LOK interface for additional options
Fully adjustable stock
Shooter can easily adjust cheek height, cheek position, length of pull, buttstock height and pivot for any rifle scope size and height, type of shooting position, individual features etc.
Stock folds to the right
Folding stock makes storage, transportation and cleaning of the rifle much easier and more comfortable for the shooter. Closed stock fully encloses bolt knob for maximum portability.
New for ARC chassis generation 3.0
Stock fixation in a folded position using a QD-mount, to unfold the stock just pull with your hand.
Integrated ARCA Rail
Is used for attaching your rifle to tripods,bipods and fitting different accessories like ARCA plates, etc.
M-LOK compatible interface
Worldwide accepted M-LOK interface, introduced by Magpul, is now an established standard for accessories attachments. ARC 3.0 chassis’ handguard has M-LOK slots on the bottom and on both right and left sides.
AR-15 type pistol grip compatible
Shooter can choose from hundreds of AR-15 compatible pistol grips made by third-party manufacturers. We recommend Ergo Grip Deluxe or similar model. Grip should be made without “beavertail”, or slightly modified to eliminate this part.
Integrated steel QD-mount
Five bases for quick detach sling attachment provided for ease of transportation. User can install M-LOK style QD mount on the handguard if needed
Hard stressed parts made from steel
Folding stock lock pin, folding stock rotation shaft, folding stock release button, magazine release and adjustable butt plate are made from steel for added strength
Adjustable magazine height
Chassis for Remington 700 style actions has an adjustable magazine height, to ensure perfect feeding no matter what action and magazine combination you use
2.3 Fully adjustable stock
Shooter can easily adjust cheek height, cheek position, length of pull, buttstock height and pivot for any rifle scope size and height, type of shooting position, individual features etc.
Stock folds to the right
Folding stock makes storage, transportation and cleaning of the rifle much easier and more comfortable for the shooter. Closed stock fully encloses bolt knob for maximum portability.
New for ARC chassis generation 2.3
Stock fixation in a folded position using a QD-mount, to unfold the stock just pull with your hand.
Automatic ARCA Rail
Is used for attaching your rifle to tripods,bipods and fitting different accessories like ARCA plates, etc.
M-LOK compatible interface
Worldwide accepted M-LOK interface, introduced by Magpul, is now an established standard for accessories attachments. Thus ARC 2.3 chassis’ handguard has 6 M-LOK slots on the bottom and 5+5 slots on both right and left sides.
AR-15 type pistol grip compatible
Shooter can choose from hundreds of AR-15 compatible pistol grips made by third-party manufacturers. We recommend Ergo Grip Deluxe or similar model. Grip should be made without “beavertail”, or slightly modified to eliminate this part.
Integrated steel QD-mount
Four bases for quick detach sling attachment provided for ease of transportation. User can install M-LOK style QD mount on the handguard if needed
Hard stressed parts made from steel
Folding stock lock pin, folding stock rotation shaft, folding stock release button, magazine release and adjustable butt plate are made from steel for added strength
Adjustable magazine height
Chassis for Remington 700 style actions has an adjustable magazine height, to ensure perfect feeding no matter what action and magazine combination you use
