Automatic ARC for HOWA 1500 Short Action
Type
Price
The new generation of the Automatic ARC2.3 chassis has come even closer to perfection, integrating previous developments with innovative solutions. The Automatic ARC2.3 chassis offers a range of advantages for building a high-precision shooting system, including:
- A rigid, one-piece metal construction, CNC-machined from 7075-T6 aluminum alloy and anodized.
- Foldable stock.
- Adjustable stock components.
- Magpul M-LOK interface.
- ARCA Rail installation ready.
- Picatinny interface on the bottom of the chassis.
Compared to the previous generation, the Automatic ARC2.3 features several important upgrades:
- A newly added thumb rest improves shot control and consistency, ensuring that only the trigger finger remains engaged while other fingers stay relaxed.
- Several QD sling mount bases have been added for accessory attachment.
- The stock folding mechanism has been enhanced for increased reliability and simplicity. In the folded position, the stock locks into a QD mount base. To unfold it, no button press is needed — simply pull the stock outward.
- The stock adjustment mechanism has been improved: the screws for adjusting the cheek rest and buttpad height are now secure and won’t fall out when loosened.
- Stock length and cheek rest height can now be adjusted without tools.
- The cheek rest is made from low-thermal-conductivity material Delrin, and the soft buttpad features both height adjustment and tilt angle adjustment relative to the stock axis.
- A new mechanism for adjusting magazine seating height within the magwell has been added, allowing compatibility with magazines from different manufacturers.
Optional accessories for the Automatic ARC2.3 :
- Long ARCA-Rail Automatic for mounting bipods, tripods, barricade stops, or shooting platforms for use with shooting bags. .
- Automatic ARCA Clamp + M-Lock 1913 Picatinny Rail 5-slot Combo
- Automatic ARCA Clamp + M-Lock Bipod Mount Combo (for Harris type bipod)
- Automatic ARCA Trident Plate
- Automatic NV/Thermal Mount Gen2
- Automatic Bag Rider.
Weight: 2380 gr
Gen 3.0
Gen 2.3

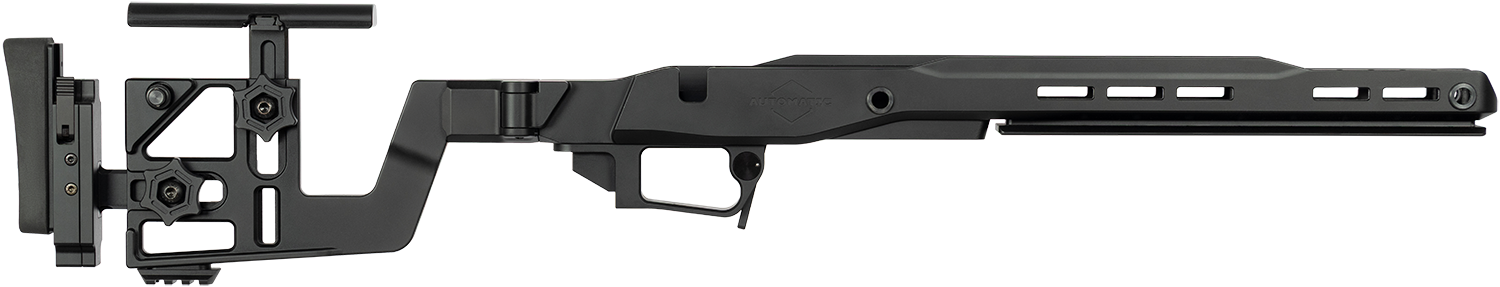

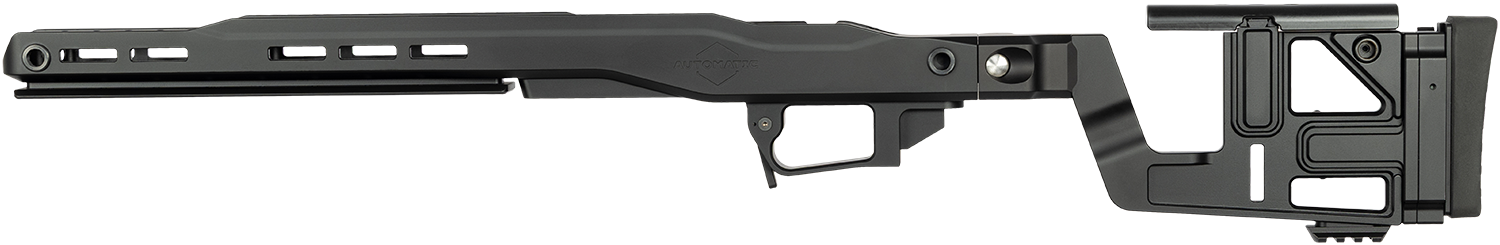

Right side
Left side
Top side

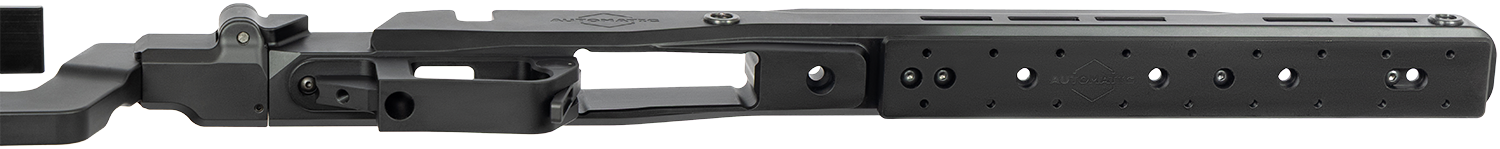

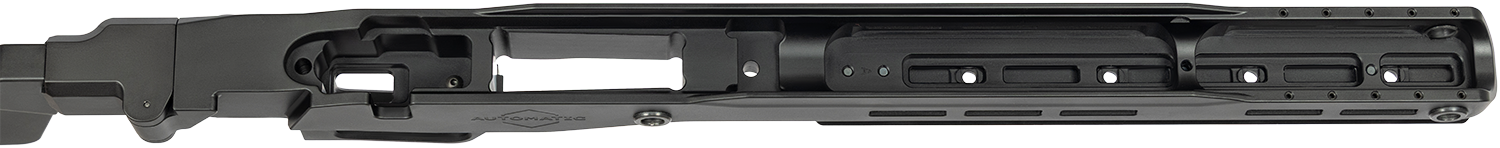

Bottom side
Gen 3.0
Fully adjustable stock
Buttstock folds to the right
CNC machined from 7075-T6 aluminum alloy
Highly-stressed parts made out of steel
Hard Anodic Coatings: MIL-A-8625 Type III Class 1 & Class 2
M-LOK compatible interface
No bedding needed
M-LOK, Anschutz Rail, ARCA Rail interfaces
AR-15 type pistol grips compatible
Gen 2.3
Fully adjustable stock
Buttstock folds to the right
CNC machined from 7075-T6 aluminum alloy
Highly-stressed parts made out of steel
Hard Anodic Coatings: MIL-A-8625 Type III Class 1 & Class 2
M-LOK compatible interface
No bedding needed
Proprietary interface for Automatic ARCA Rail and other accessories
AR-15 type pistol grips compatible
Gen 3.0
Gen 2.3
Light and sturdy for extreme field use
Highly customizable for positional shooting
Uses M-LOK interface for additional options
Light and sturdy for extreme field use
Highly customizable for positional shooting
Uses M-LOK interface for additional options

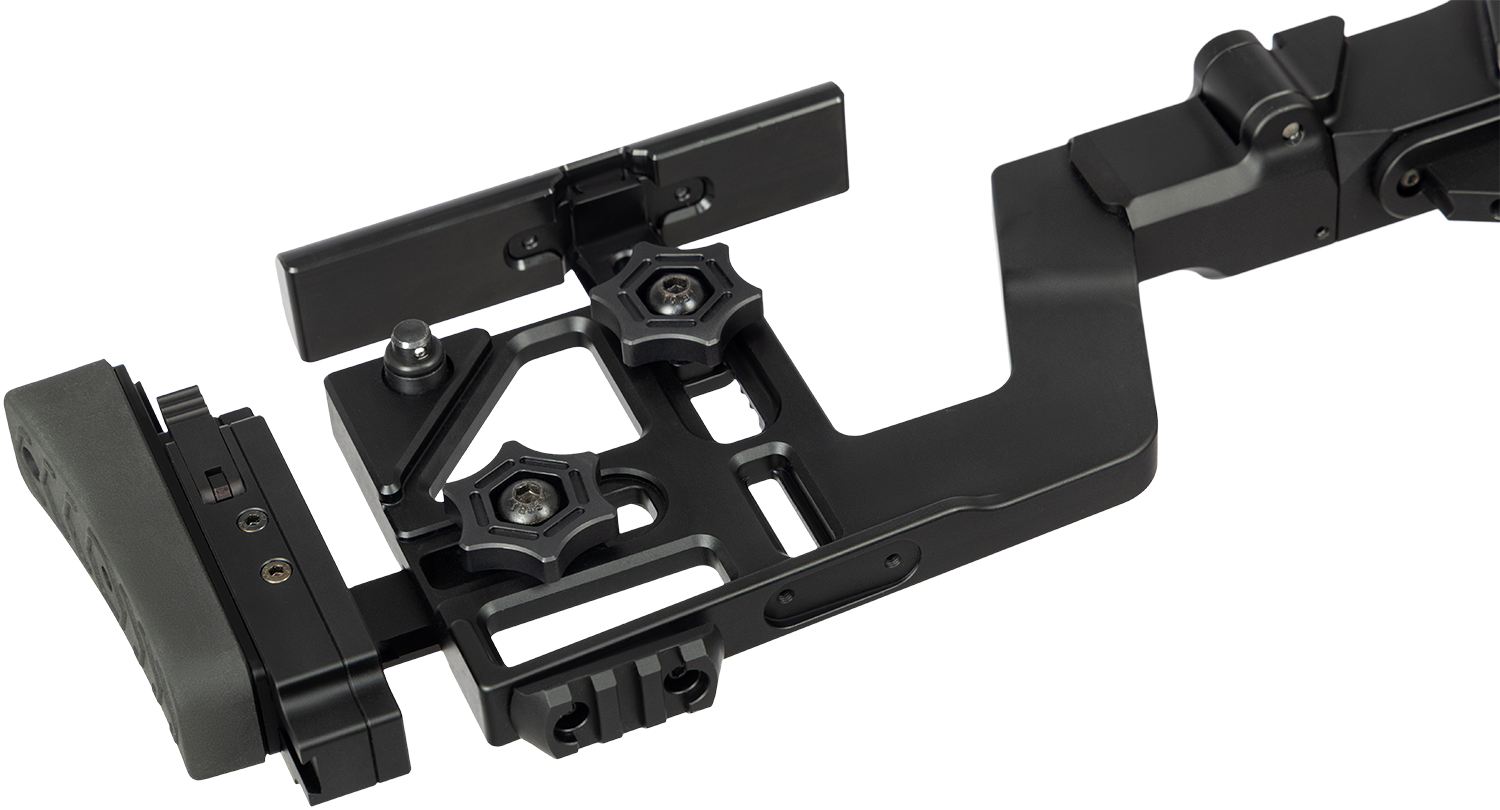

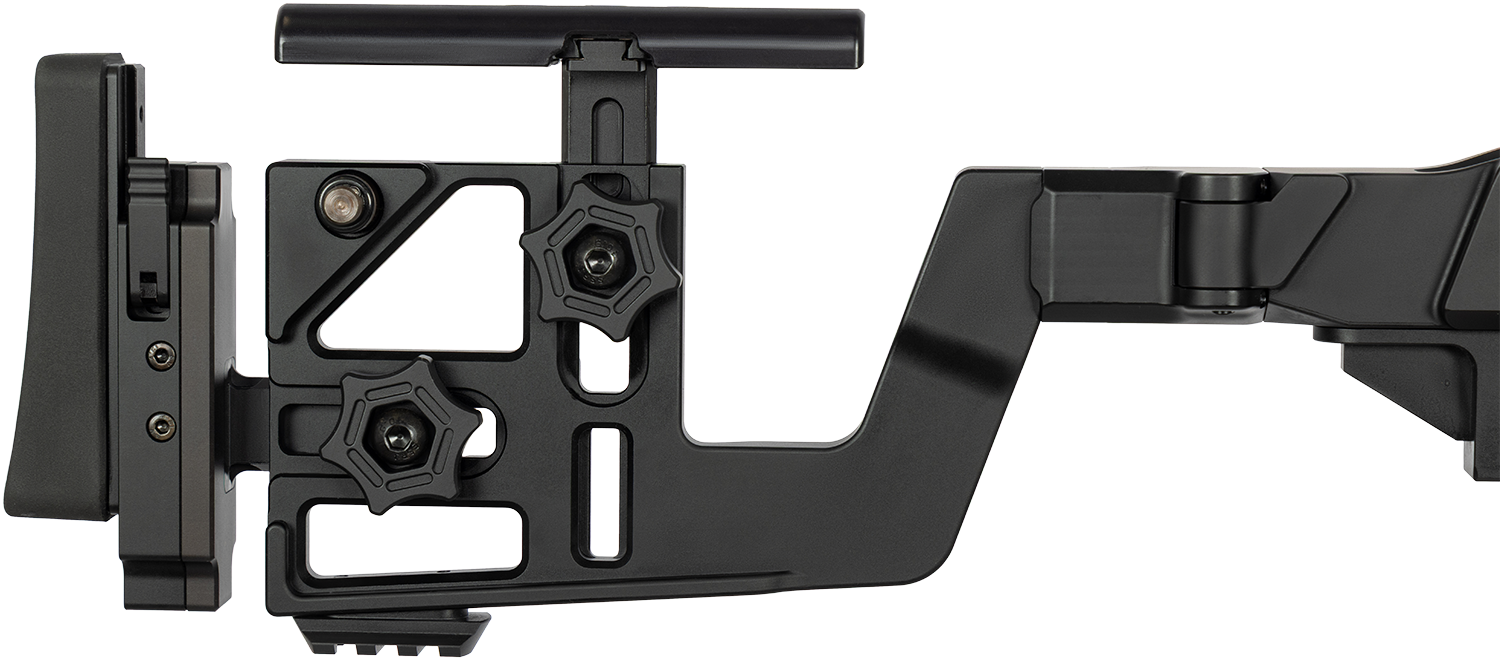

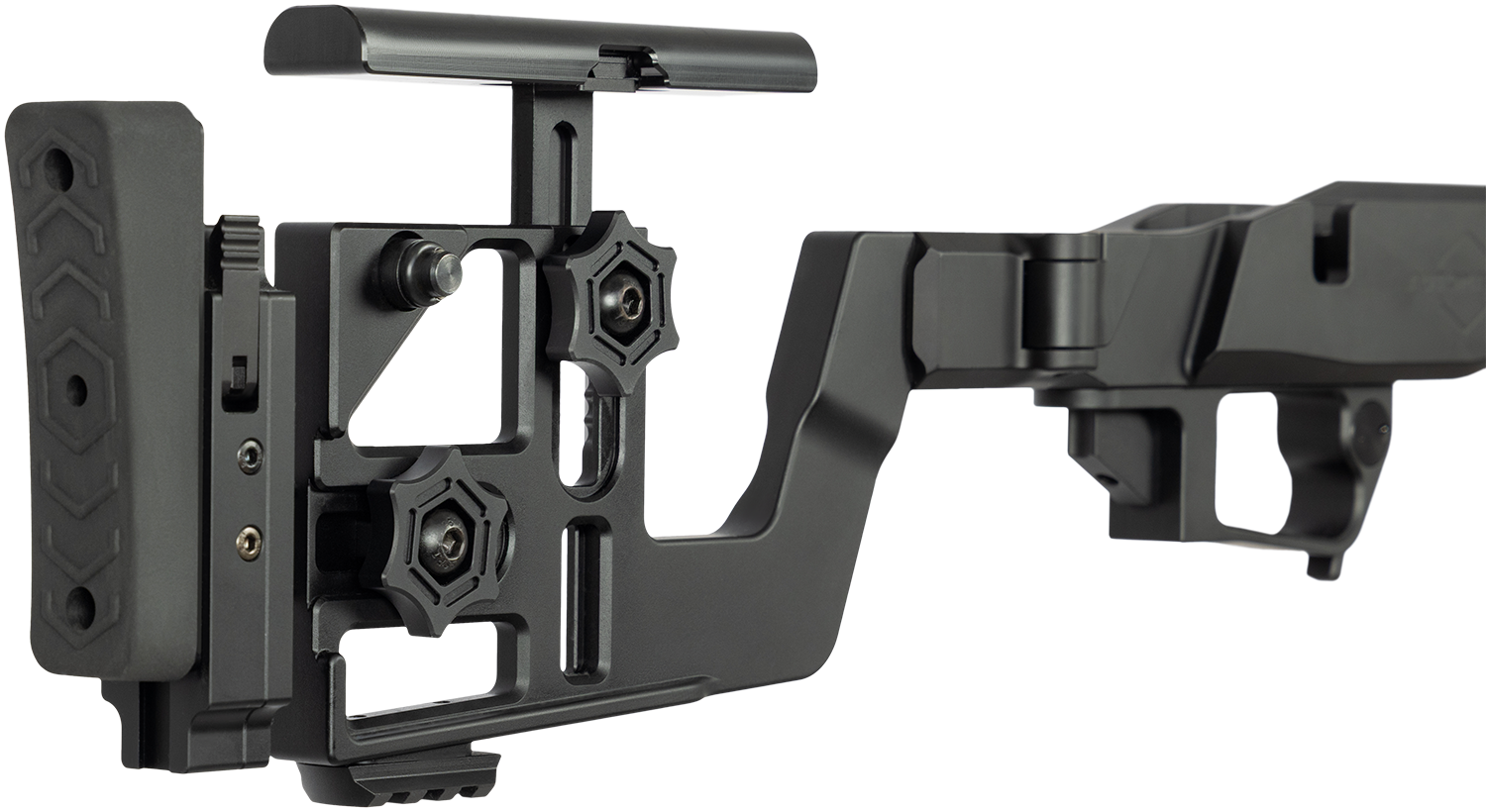

Fully adjustable stock
Shooter can easily adjust cheek height, cheek position, length of pull, buttstock height and pivot for any rifle scope size and height, type of shooting position, individual features etc.

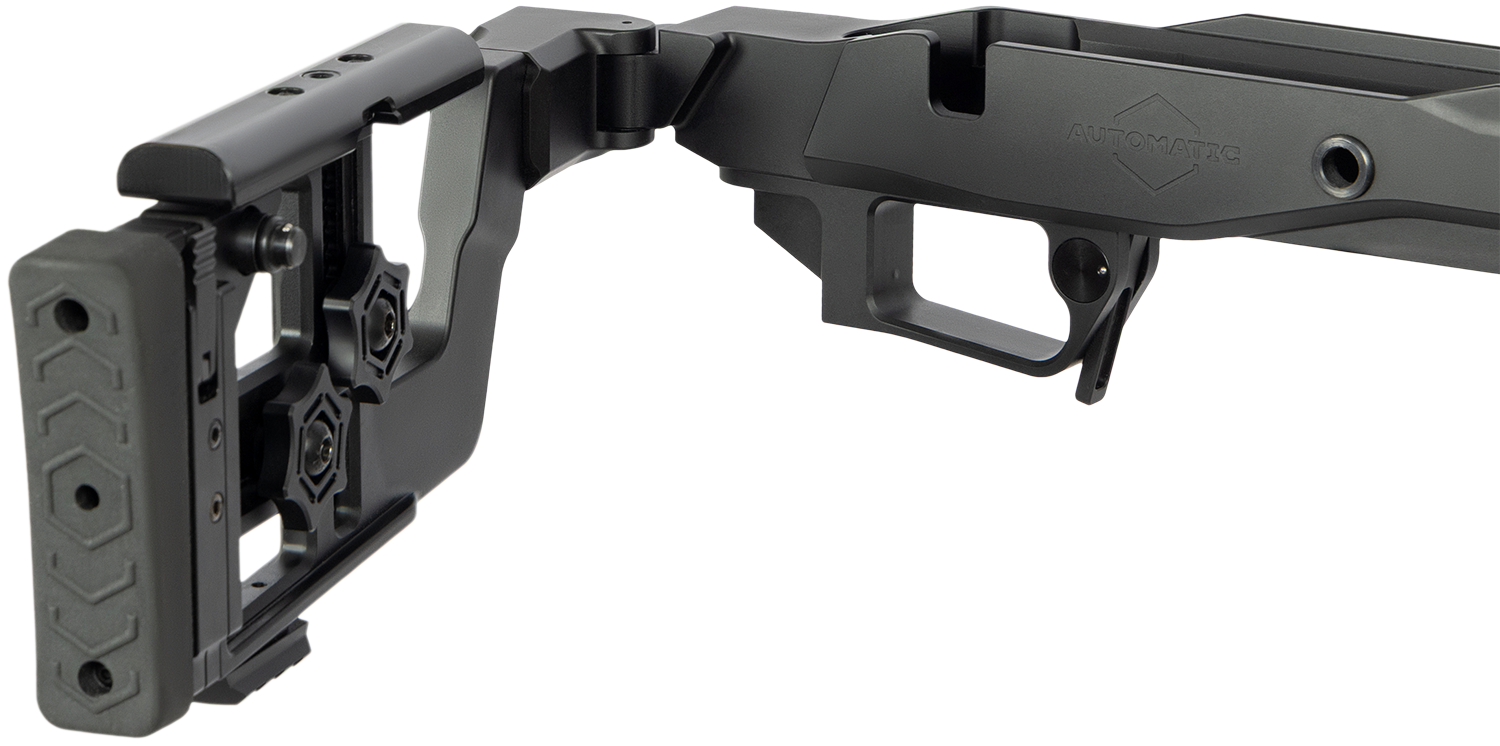

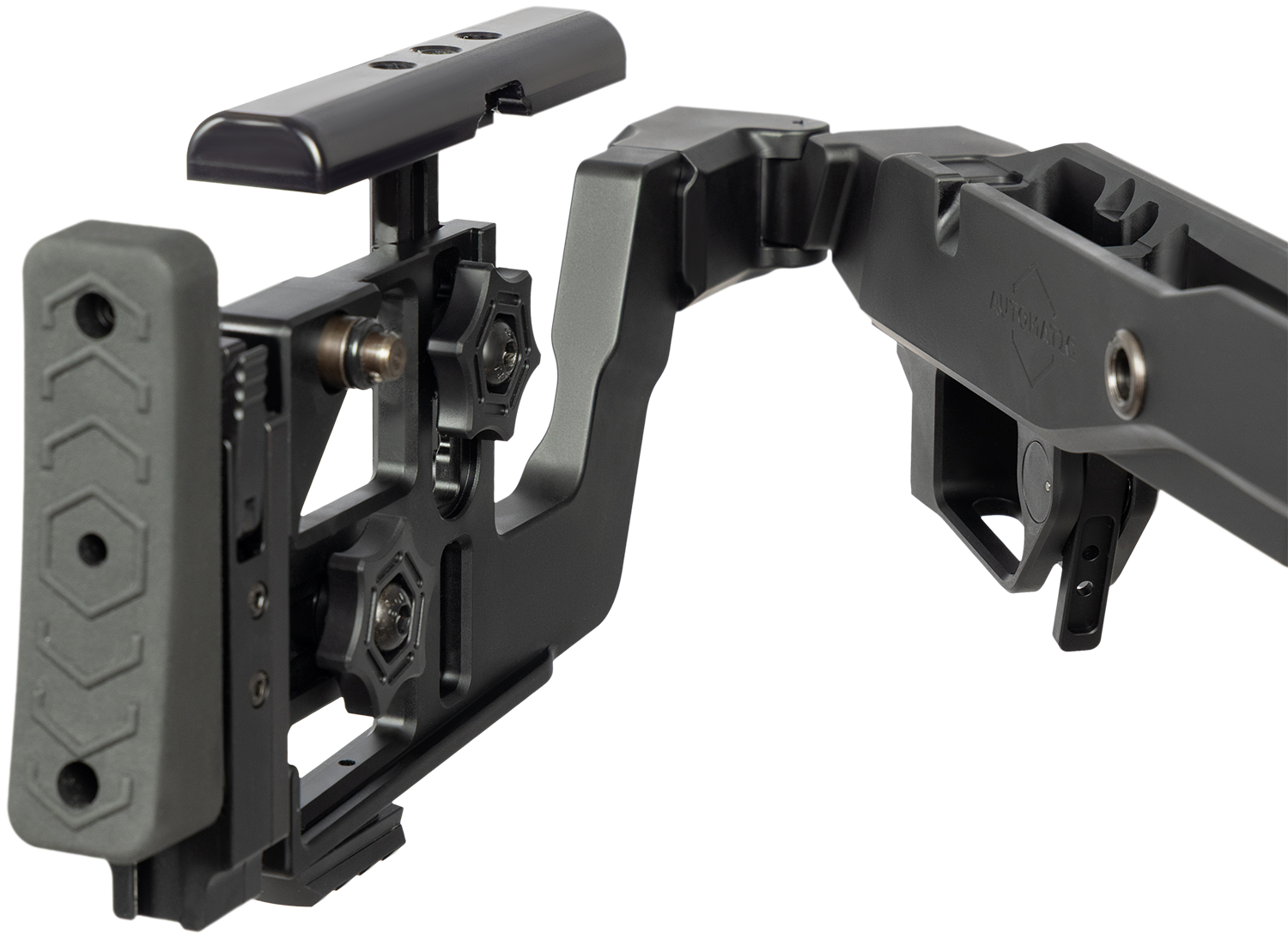

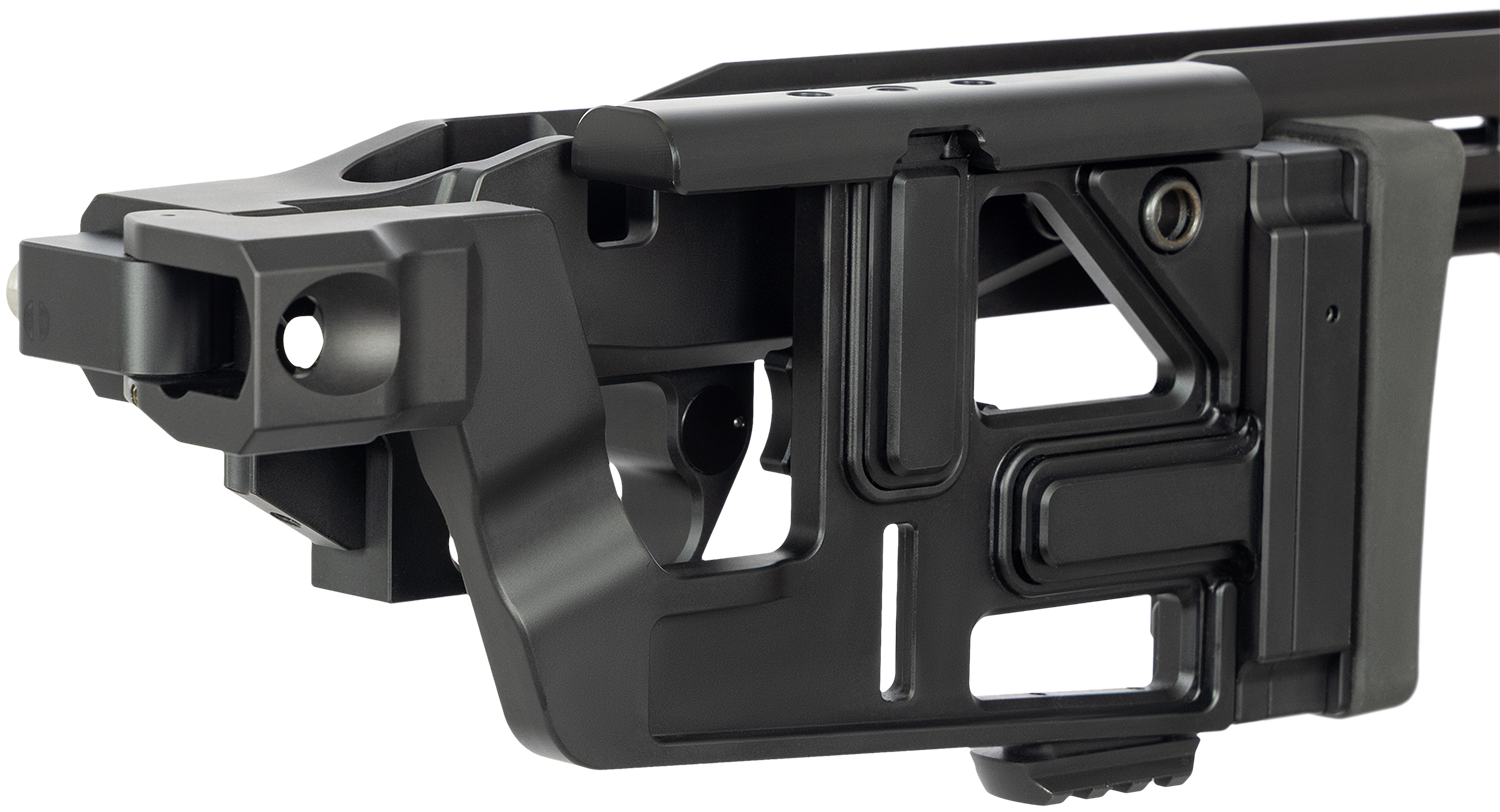

Stock folds to the right
Folding stock makes storage, transportation and cleaning of the rifle much easier and more comfortable for the shooter. Closed stock fully encloses bolt knob for maximum portability.
New for ARC chassis generation 3.0
Stock fixation in a folded position using a QD-mount, to unfold the stock just pull with your hand.
Integrated ARCA Rail
Is used for attaching your rifle to tripods,bipods and fitting different accessories like ARCA plates, etc.
M-LOK compatible interface
Worldwide accepted M-LOK interface, introduced by Magpul, is now an established standard for accessories attachments. ARC 3.0 chassis’ handguard has M-LOK slots on the bottom and on both right and left sides.

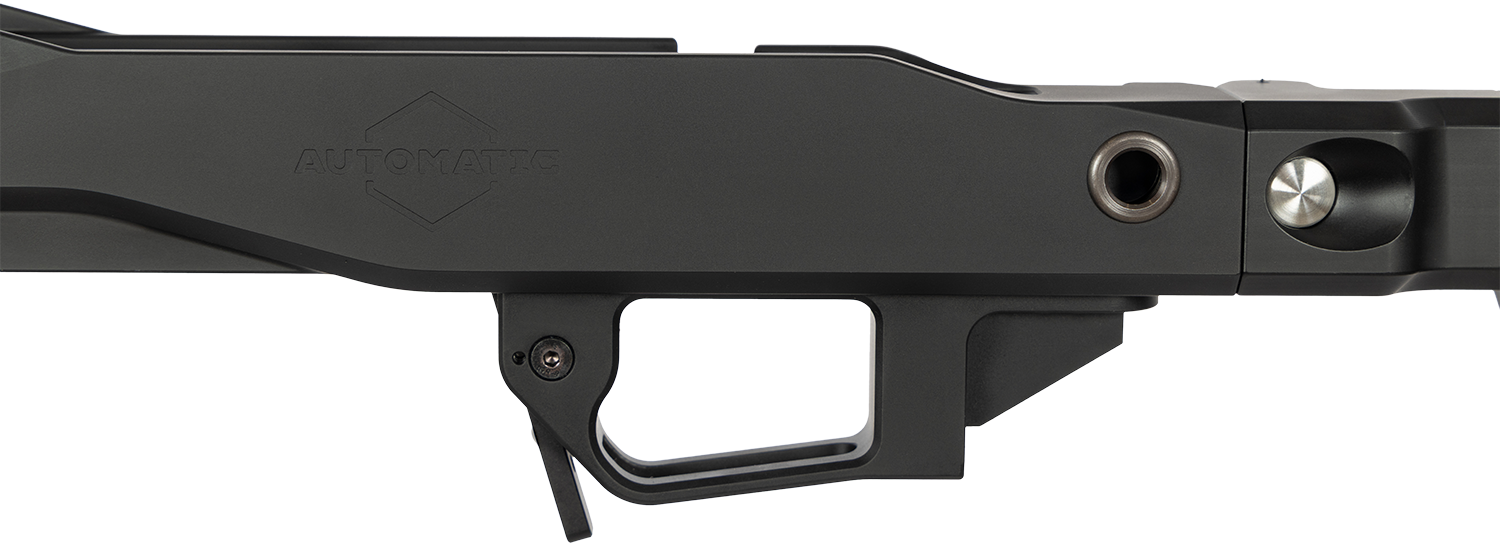

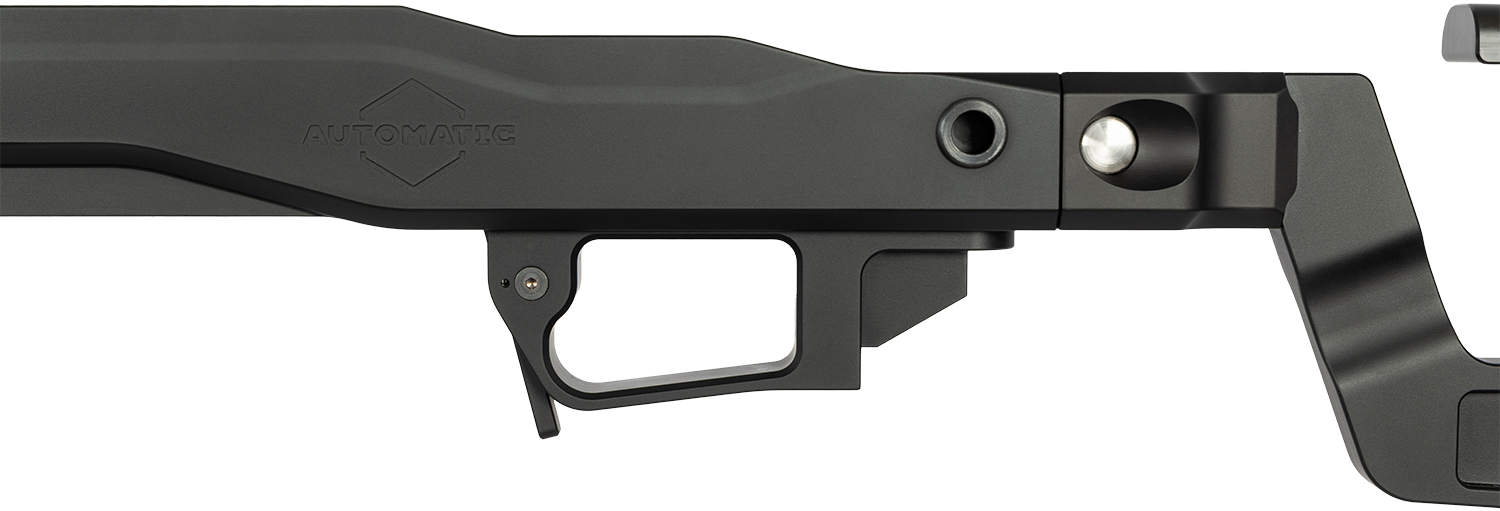

AR-15 type pistol grip compatible
Shooter can choose from hundreds of AR-15 compatible pistol grips made by third-party manufacturers. We recommend Ergo Grip Deluxe or similar model. Grip should be made without “beavertail”, or slightly modified to eliminate this part.
Integrated steel QD-mount
Five bases for quick detach sling attachment provided for ease of transportation. User can install M-LOK style QD mount on the handguard if needed

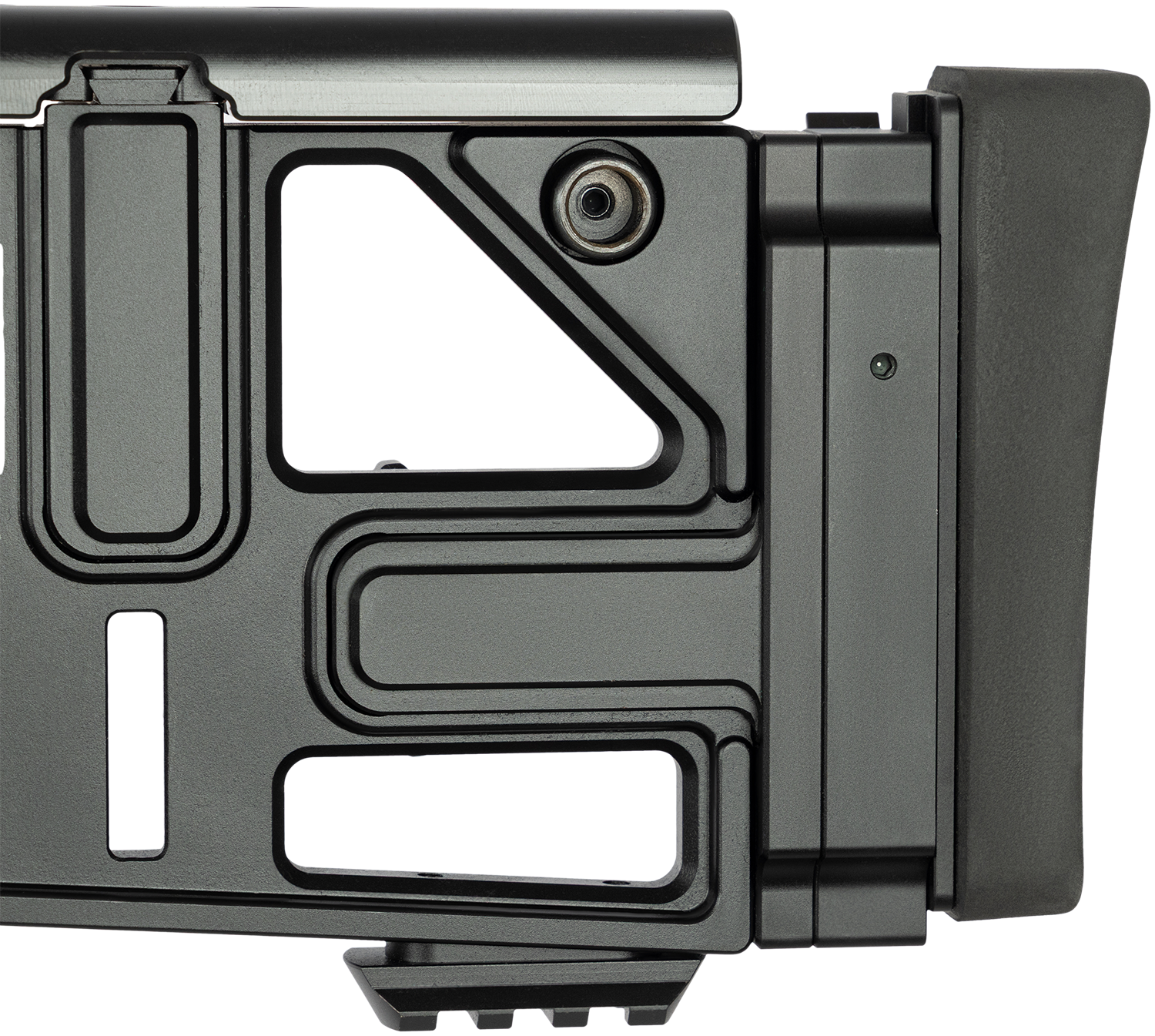

Hard stressed parts made from steel
Folding stock lock pin, folding stock rotation shaft, folding stock release button, magazine release and adjustable butt plate are made from steel for added strength
Adjustable magazine height
Chassis for Remington 700 style actions has an adjustable magazine height, to ensure perfect feeding no matter what action and magazine combination you use

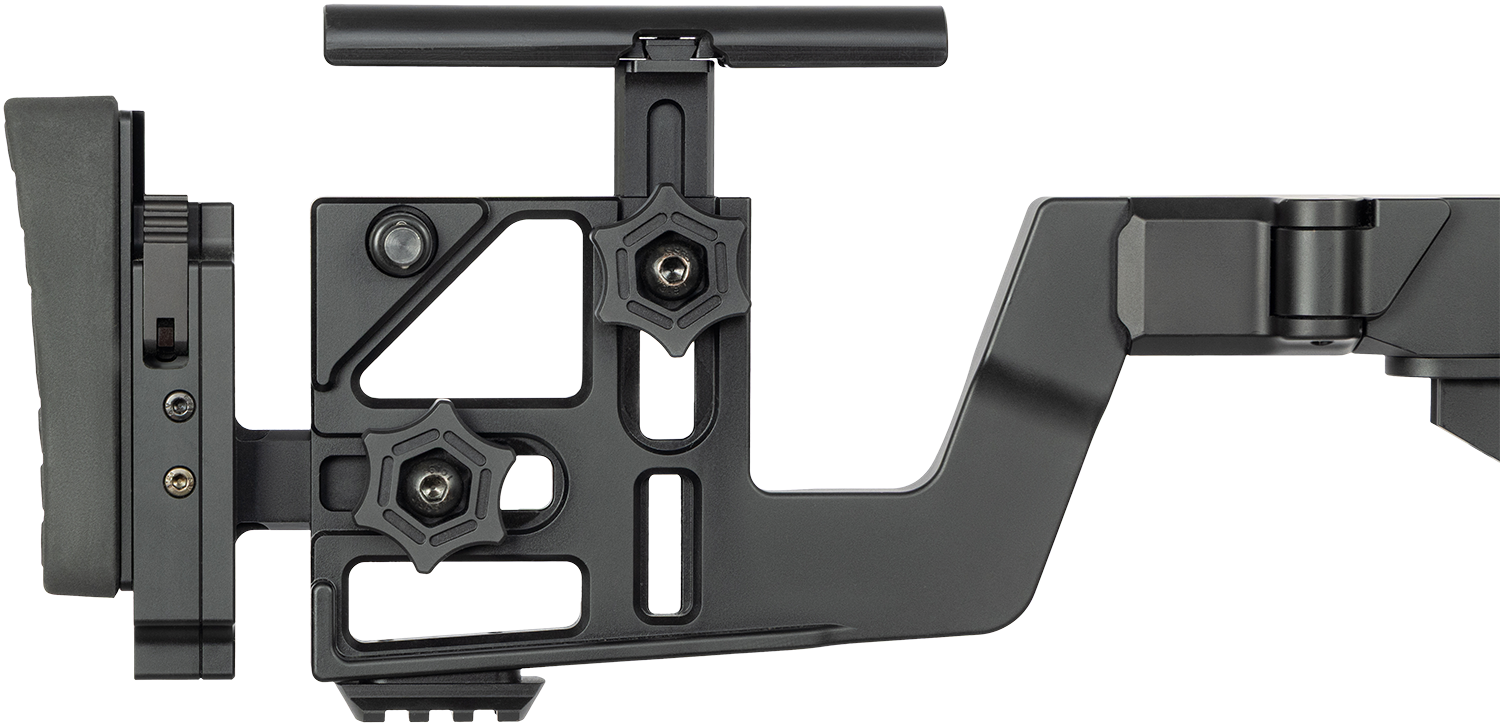

2.3 Fully adjustable stock
Shooter can easily adjust cheek height, cheek position, length of pull, buttstock height and pivot for any rifle scope size and height, type of shooting position, individual features etc.

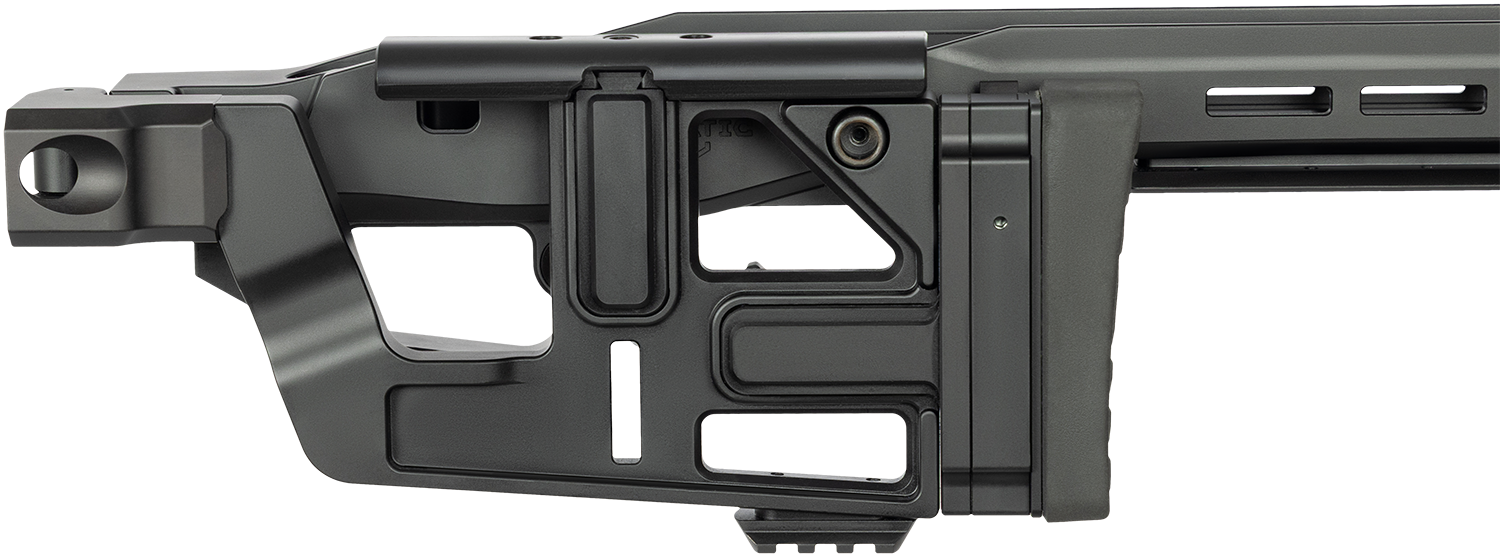

Stock folds to the right
Folding stock makes storage, transportation and cleaning of the rifle much easier and more comfortable for the shooter. Closed stock fully encloses bolt knob for maximum portability.
New for ARC chassis generation 2.3
Stock fixation in a folded position using a QD-mount, to unfold the stock just pull with your hand.
Automatic ARCA Rail
Is used for attaching your rifle to tripods,bipods and fitting different accessories like ARCA plates, etc.
M-LOK compatible interface
Worldwide accepted M-LOK interface, introduced by Magpul, is now an established standard for accessories attachments. Thus ARC 2.3 chassis’ handguard has 6 M-LOK slots on the bottom and 5+5 slots on both right and left sides.
AR-15 type pistol grip compatible
Shooter can choose from hundreds of AR-15 compatible pistol grips made by third-party manufacturers. We recommend Ergo Grip Deluxe or similar model. Grip should be made without “beavertail”, or slightly modified to eliminate this part.
Integrated steel QD-mount
Four bases for quick detach sling attachment provided for ease of transportation. User can install M-LOK style QD mount on the handguard if needed
Hard stressed parts made from steel
Folding stock lock pin, folding stock rotation shaft, folding stock release button, magazine release and adjustable butt plate are made from steel for added strength
Adjustable magazine height
Chassis for Remington 700 style actions has an adjustable magazine height, to ensure perfect feeding no matter what action and magazine combination you use
